Drilling to date has focused on testing for depth extensions of the Williams porphyry Cu-Au system, porphyry Cu-Au targets across the valley (east) in an area with no historical drilling, and at the Upper and Lower Hank porphyry Cu-Au targets (Fig. 1).

Dustin Perry, CEO, states "So far, the 2025 drill program has matched our expectations of vertically extending porphyry mineralization at Williams as well as providing a much clearer understanding of this highly prospective district. Our exploration hypothesis indicates vertical continuity of the gold-rich bornite zone, and these holes demonstrate that bornite continues to depth where it was predicted."

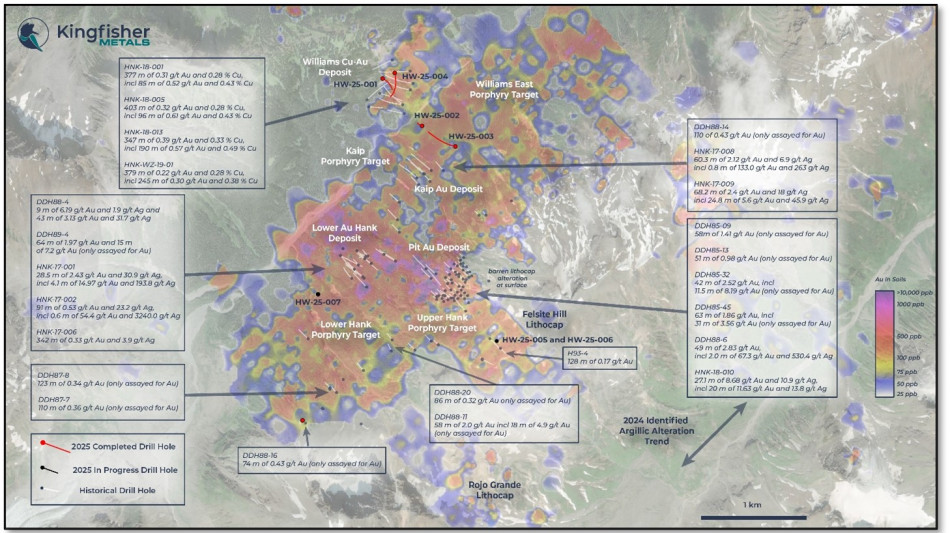

Figure 1: Hank-Williams Drill Area

Williams Area Drilling

The first drill hole of the program, HW-25-001, was completed upslope and west of potassic alteration and drilled steeply to the east. The drill hole was collared at a 110 ^o azimuth and -80 ^o dip, designed to test the western limit of the porphyry system and provide important data to define the orientation of the mineralized system at Willams. The drill struggled passing through several fault zones and deviated clockwise significantly more than historical drill holes in the region ending approximately 40 ^o azimuth from the planned target. Despite this, HW-25-001 intersected potassic alteration, often overprinted by phyllic alteration with chalcopyrite ± bornite mineralization from 390 m726 m (Fig. 2 and 3), end of hole was at 803 m and bottomed in early mineral monzanite. This drill test provided valuable insights to the mineralized system at Williams including identifying two porphyry intrusive phases that were previously lumped into one. The insights have improved Kingfisher's geoscience teams understanding of the mineralized system at Williams and allowed for better targeting of the younger more productive intrusive phase.

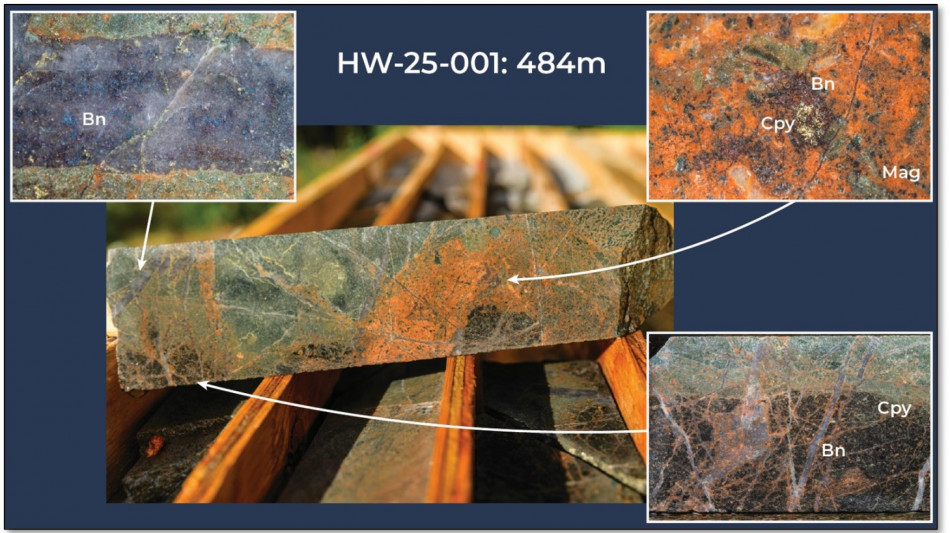

Figure 2: HW-25-001: 484m (Bn = Bornite, Cpy = Chalcopyrite, Mag = Magnetite) ¹

Figure 3: HW-25-001: 538m and 543m (Bn = Bornite, Cpy = Chalcopyrite) 1

Drill holes HW-25-002 (275 ^o /-60 ^o) and HW-25-003 (285 ^o /-68 ^o) were drilled across Hank Creek to the southeast and tested shallow chargeability anomalies that coalesce with the Williams porphyry chargeability signature at depth. Drilling in both holes encountered widespread intense quartz-sericite-pyrite-carbonate alteration in the top 250 m (HW-25-002) and 350 m (HW-25-003). Below this, it transitioned to a less altered, polyphase diatreme breccia which is interpreted to be emplaced before the mineralizing events at Williams (Fig 4). Diatreme breccias are commonly formed as an eruptive phase preceding or post-dating the formation of porphyry Cu-Au deposits. Surface mapping and drill results are interpreted to demonstrate high prospectivity for porphyry Cu-Au discovery at the margins of the diatreme breccia. It is believed that the Williams deposit, the Kaip target and the Williams East target (Fig. 1) are located at this boundary. At depth, the chargeability anomaly remains unexplained.

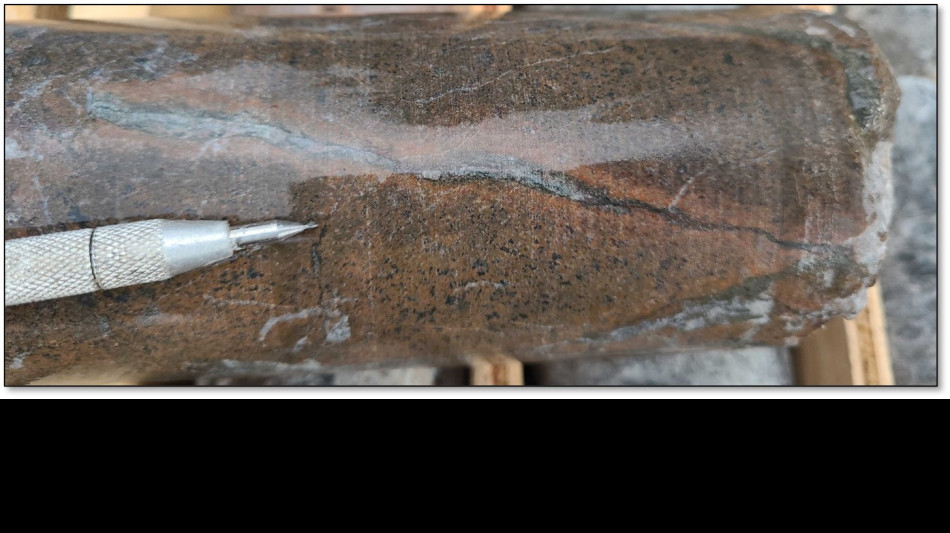

Figure 4: HW-25-002: 516m ¹

HW-25-004 was collared at 174 ^o degrees and -76 ^o dip, upslope and north of potassic alteration at Williams. After passing through the Williams thrust fault at 327 m, the drill hole entered Cu-bearing potassic alteration. Intense potassic alteration with chalcopyrite-bornite mineralization (vein, stringer, disseminated, and blebby) was intersected from 327 to 805 m downhole and trace chalcopyrite to end of hole at 884.9 m (Figs. 5-8). Bornite occurs at surface (Fig. 9) at the discovery outcrop and has been intersected in drilling down to a vertical extent of 680 m. Strong potassic alteration comparable to what was noted in historical drill hole HNK-18-013 was intersected across this broad interval and extended visible copper mineralization ~150 m below historical drilling levels. Mineralization is open at depth and will be tested with additional drilling this field season.

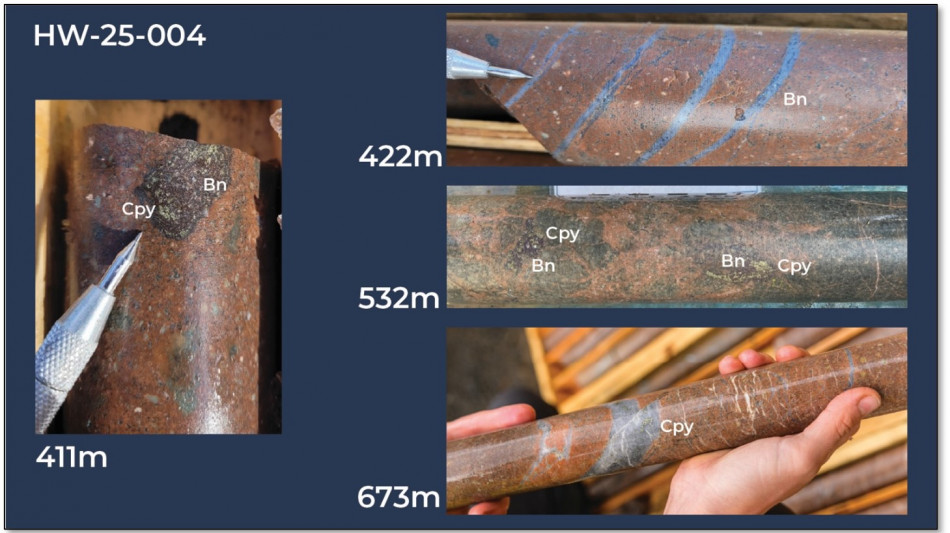

Figure 5: HW-25-004: 411m, 422m, 532m, 673m (Bn = Bornite, Cpy = Chalcopyrite) ¹

Figure 6: HW-25-004: 688m ¹

Figure 7: HW-25-004: 690m ¹

Figure 8: HW-25-004: 716m ¹

Figure 9: Surface Expression of Williams Porphyry Cu-Au System Containing Chalcopyrite and Bornite

Upper Hank Drilling

Hole HW-25-005 was collared at 275 ^o azimuth and -76 ^o dip and was targeting the Upper Hank Porphyry Target. This hole had to be abandoned before the planned depth of 800 m at 280 m due to drilling difficulties. This hole cut below the surface projection of a mapped polymictic, pyrite-rich breccia body. Two narrow porphyry intrusions were intersected accompanied by stringer veins of pyrite-magnetite-hematite and show similarities to intrusions observed at Williams. A new hole, HW-25-006 is a re-drill and is currently underway to test the chargeability anomaly target at depth below the pyrite-rich breccia.

Figure 10: HW-25-005: 197m ¹

Lower Hank Drilling

Hole HW-25-007 is currently drilling at the Lower Hank Porphyry target with a collar azimuth of 174 ^o and a dip of -65 ^o . The hole is projected to intersect a steep quartz-sericite-pyrite-carbonate body mapped on surface (>5% Py) to 200 m depth. The broad low-angle plunge of Cu-Au-Ag grade in the historical LAZ drill holes projects to ~200-250 m depths of the planned hole. Below 250 m, the hole is projected to pass into the chargeability anomaly (> 25 mv/V) and will test for indications of a porphyry body at a comparable elevation to the Williams deposit.

Regional Exploration Update

The airborne electromagnetic (MMT) survey is underway with approximately 65% of the survey completed so far. Induced polarization (IP) geophysics crews arrived on site on July 26 ^th and are currently surveying the Hank-Williams-Mary trend. Soil sampling was completed over a three-week period and collected over 750 samples. This soil sampling program successfully covered gaps in historical sampling between Hank-Williams and Mary-ME, NE of Mary and ME, and within the valley southeast of Hank and ME.

Dr. Stephanie Sykora has been onsite for approximately two weeks. Her work has focused better understanding the controls on mineralization at the Williams area. Dr. Sykora's mapping campaign has been supported correlating the surface observations with detailed drill core logging. In the coming week Dr. Roy Greig and a team of mapping geologists from C.J. Greig & Associates will arrive on site to map several grassroots regions on the project.

Qualified Person

Dustin Perry P.Geo., Kingfisher's CEO, is the Company's Qualified Person as defined by National Instrument 43-101, Standards of Disclosure for Mineral Projects, and has prepared the technical information presented in this release.

About Kingfisher Metals Corp.

Kingfisher Metals Corp. (https://kingfishermetals.com/) is a Canadian based exploration company focused on copper-gold exploration in the Golden Triangle, British Columbia. Through outright purchases and option earn in agreements (Orogen Royalties and Golden Ridge Resources) the Company has quickly consolidated one of the largest land positions in the region at the contiguous 849 km ² HWY 37 Project. Kingfisher also owns (100%) two district-scale orogenic gold projects in British Columbia that total 641 km ² . The Company currently has 88,661,810 shares outstanding.

For further information, please contact:
Dustin Perry, P.Geo.
CEO and Director
Phone: +1 778 606 2507
E-Mail: [email protected]

Neither the TSX-V nor its Regulation Services Provider (as that term is defined in the policies of the TSX-V) accepts responsibility for the adequacy or accuracy of this release.

Cautionary Note Regarding Forward-Looking Statements

Mineralization hosted on adjacent and/or nearby properties is not necessarily indicative of mineralization hosted on the Company's property. This news release contains statements that constitute "forward-looking statements." Such forward-looking statements involve known and unknown risks, uncertainties and other factors that may cause the Company's actual results, performance or achievements, or developments to differ materially from the anticipated results, performance or achievements expressed or implied by such forward-looking statements. Forward-looking statements are statements that are not historical facts and are generally, but not always, identified by the words "expects," "plans," "anticipates," "believes," "intends," "estimates," "projects," "potential" and similar expressions, or that events or conditions "will," "would," "may," "could" or "should" occur.

Forward-looking statements in this news release include, among others, statements relating to expectations regarding the projects, and other statements that are not historical facts. By their nature, forward-looking statements involve known and unknown risks, uncertainties and other factors which may cause our actual results, performance or achievements, or other future events, to be materially different from any future results, performance or achievements expressed or implied by such forward-looking statements. Such factors and risks include, among others: the Company may require additional financing from time to time in order to continue its operations which may not be available when needed or on acceptable terms and conditions acceptable; compliance with extensive government regulation; domestic and foreign laws and regulations could adversely affect the Company's business and results of operations; the stock markets have experienced volatility that often has been unrelated to the performance of companies and these fluctuations may adversely affect the price of the Company's securities, regardless of its operating performance.

The forward-looking information contained in this news release represents the expectations of the Company as of the date of this news release and, accordingly, is subject to change after such date. Readers should not place undue importance on forward-looking information and should not rely upon this information as of any other date. The Company undertakes no obligation to update these forward-looking statements in the event that management's beliefs, estimates or opinions, or other factors, should change.

¹ Examples of drill core photos are included to show the different styles of lithology, alteration, and mineralization, and are not necessarily representative of the entire lengths of specific intervals discussed within this release.
